Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YK
  • Model Number: YKDD12S5**
  • Output Power: 1 - 50W
  • Output Type: Single
  • Size: 46*27*14mm
  • Weight: 30g
  • Input Voltage: 12V
  • Output Voltage: 5V, 5V
  • Type: DC/DC Converters
  • Output Frequency: /
  • Output Current: 1A/2A/3A
  • Product name: dc dc converter
  • Rated Input voltage: 12V
  • Input voltage Range: 8-22V
  • Protection: Overload,Short circuit ect.
  • Conversion efficiency: 96%
  • Application: Motor, Fan, LED Light ect.
  • Warranty: 1 year
  • wateproof: IP67
  • Working Temperature: -20~85℃

Packaging & Delivery

Packaging Details: DC DC Converter Standard Package
Delivery Detail: After payment confirm 3-5 working days
Product Display
Detailed Image
Output
Voltage
12V
Rated Current
1A/2A/3A
Rated Power
12W/24W/36W
Input
Voltage
12V
Voltage Range
8-22V
Soft Start Time
~500ms
Conversion Efficicency
>90%
Working Temperature
-40℃ ~ +85℃
Ripple(MV)
80MV
Power Consumption
25MA
Load regulation
± 2%
Voltage Regulation
± 1%
Measurement
46*27*14mm
Weight
30g


Specification
Over-current protection
Overheat protection
Short-circuit protection and automatic recovery
Full waterproof potting

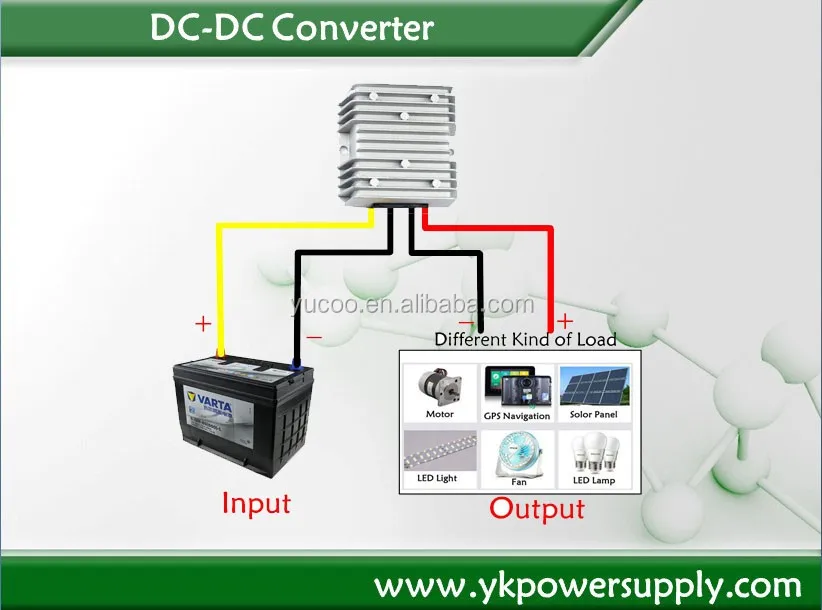

Connection
Packing & Delivery

Why us ?

*Service .........................RMA(24/7Technical Support), OEM,  ODM
*Quality.........................Less than 0.5% of failure rate
*Warranty......................Up to 1 year
*Price.............................Factory Price! Cut down the cost you  paid to the middle man
*Professional.....Founded in 2003, Produce power supply  products for 13years in China.
*Reliable.........................One of the Top 50 power supply  manufacturers in China
Your Power Supply System, Our Design and Support !


Warranty

We provide 12 months warranty.

1. If the item is defective, please notify us within 7 days of  delivery.

2. All items must be return in original condition, in order to qualify for a refund or exchange the goods.

3. Items returned after 15 days after delivery are only eligible for repair.

4. The buyer is responsible for all shipping const when buying , it means the buyer have given tacit consent to the policy.

5. If further details, please fell free to contact us , we will work with you to reach win-win situation.


Our Company
Certifications
FAQ

12V TO 5V DC DC Converter

Question: Step down & Boost & Automatic Step down and Boost DC-DC Converter
Answer: 1. Step down DC-DC Converter- Input voltage must be more than 3V output voltage

               2. Boost DC-DC Converter-- Input voltage must be less than 3V/more of output voltage
               3. Automatic Step down and Boost DC-DC Converter-- output voltage between the input voltage range

Question: Can you customize multi-output 12 to 5v dc dc step down power converter ?
Answer: For now, because of the Yucoo dc dc converter’s design and it’s capacity, we can make 2-channels as max output.

Question: Can you make the 12 to 5v dc dc step down power converter with adjustable output voltage?
Answer: NO. We can only make stable output voltage mode.

Question: Can you make the 12 to 5v dc dc step down power converter with stable output current?
Answer: NO. We can only make adjustable output current mode.
For example : one 0-10A model dc dc converter, if you connect with right load, all things will goes well.
                       No need to make stable output.

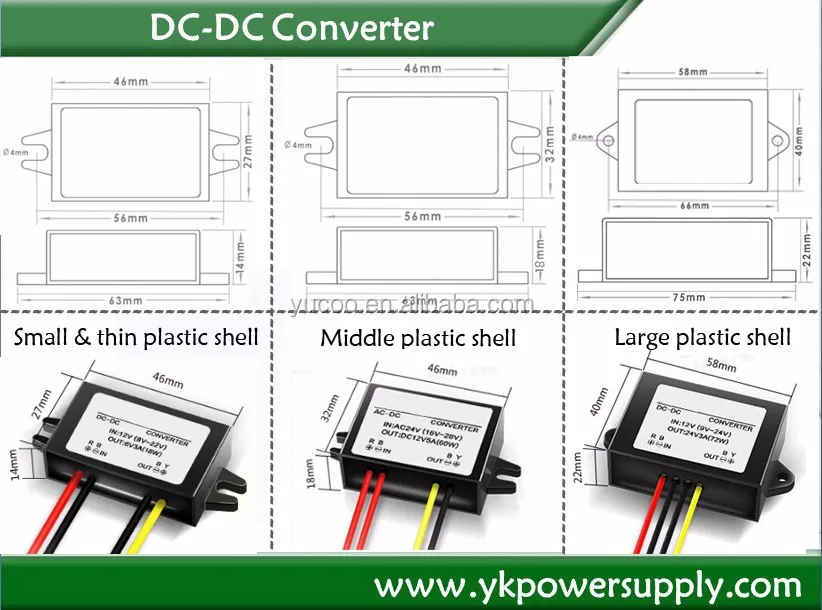

Question :All of your dc dc step down power converter is the same appearance?
Answer: 1. The material has two different kinds: Aluminium and plastic shell
               2. This two materials converter each has three kinds: large size,middle side,small size .
                  different output power has different shell

Question: Does all of the dc dc step down power converter with anti interference filtration and TVS(1500w) function?
Answer :All of the dc dc step up power converter with anti-interference filtration and TVS(1500w) function.

Question: Isolated & Non-isolated dc to dc converter?
Answer: 1,isolated dc converter is no any interference, it is suitable for sophisticated equipment and there is no any ripple
               2, Non-isolated dc converter with ripple.
               3, Dc dc converter we design is non-isolated.

Question: What is the different between the PCB and the Aluminum case type?
Answer: Both are waterproof but PCB case type with light weight.

Question: Can you make the dc to dc converter with adjustable output voltage?
Answer: No, we can just make it stable output.

Question: What is the biggest power for this small size dc to dc converter now ?
Answer: The biggest power for this kind product is not more than 360W.

Question: All of your dc to dc converter is the same appearance?
Answer: 1,The material has two different kinds: Aluminum and Plastic shell.
               2,This two materials converter each has three kinds: small size, middle size, large size. Different output power has different shell.

Question: Does the dc to dc converter support running in full load?
Answer: 1, No, all of the dc to dc converter did not work in full load.
               2, The efficiency small or equal 80%.
               3, For example: Model YK-DD12S2412 12VDC-24VDC 12A dc converter, it can support running 240W*7*24 hours.
